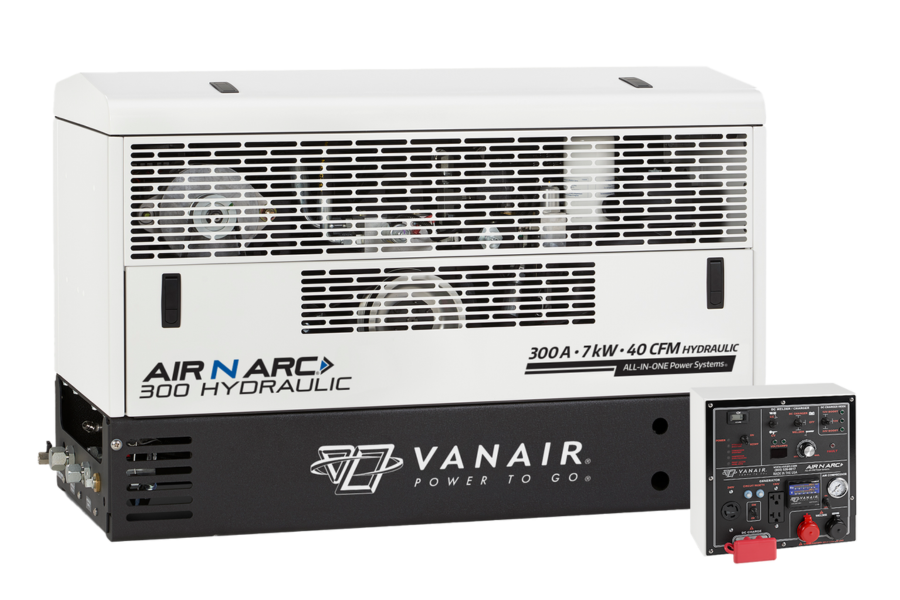

Vanair Air N Arc 300 Hydraulic ALL-IN-ONE POWER SYSTEM

Vanair Air N Arc 300 Hydraulic ALL-IN-ONE POWER SYSTEM

Manufacturer:
Vanair
Model:
Air N Arc 300 Hydraulic
Year:

Five Forms of Power – One Hydraulically Driven Unit

  • The Air N Arc® 300 Hydraulic ALL-IN-ONE Power System® features the innovation of being hydraulically driven, while still offering all the advantages of the Air N Arc® 300 engine drive system including a 40 CFM rotary screw air compressor, 300 AMP welder, 300 AMP 12V charger and 12V/24V booster, and 7 kW generator.
  • Designed as a true two-generator system, the Air N Arc® 300 Hydraulic allows simultaneous dual functionality such as welding and generator for lights for nighttime service.
  • The system offers a small footprint for side pack or behind-the-cab mounting and is ideal for trucks with hydraulics already installed, such as crane trucks.

Technical Specifications

Five Forms of Power – One Hydraulically Driven Unit

  • The Air N Arc® 300 Hydraulic ALL-IN-ONE Power System® features the innovation of being hydraulically driven, while still offering all the advantages of the Air N Arc® 300 engine drive system including a 40 CFM rotary screw air compressor, 300 AMP welder, 300 AMP 12V charger and 12V/24V booster, and 7 kW generator.
  • Designed as a true two-generator system, the Air N Arc® 300 Hydraulic allows simultaneous dual functionality such as welding and generator for lights for nighttime service.
  • The system offers a small footprint for side pack or behind-the-cab mounting and is ideal for trucks with hydraulics already installed, such as crane trucks.

Features

Specifications

  • Foot Print (In.)–47.5L x 21.0W x 33.4H, with fittings (In.)–48.0L x 25.0Wx33.4H*
  • Dry weight (Lbs.) – 870 Lbs.
  • Engine: Diesel: 25 HP Kubota®, Liquid Cooled (Tier 4 Compliant)
  • Compressor Type: Rotary screw
  • CFM Rating: 40 CFM
  • Max Pressure: 175 PSI
  • Generator Wattage: 7 kW peak – 6.8 kW continuous, AC Power, 60 Hz, Single Phase, 120V and 240V Outlets
  • Welder Amperage: High frequency DC welding, 270 AMPs at 100% duty cycle CC: 40-300 AMPs operating range, CV: 15-30 Volts
  • Battery Charger/Booster: 300 AMPs 12V/24V Boost, 50 AMP 12V Charge
  • Drive System: Belt Driven
  • Fuel Capacity (Gal.): 12 Gal. Integral Tank (Optional Remote Tank or Plumb to Chassis)
Stock Number:
Manufacturer:
Vanair
Model:
Air N Arc 300 Hydraulic
Year:
Condition:
