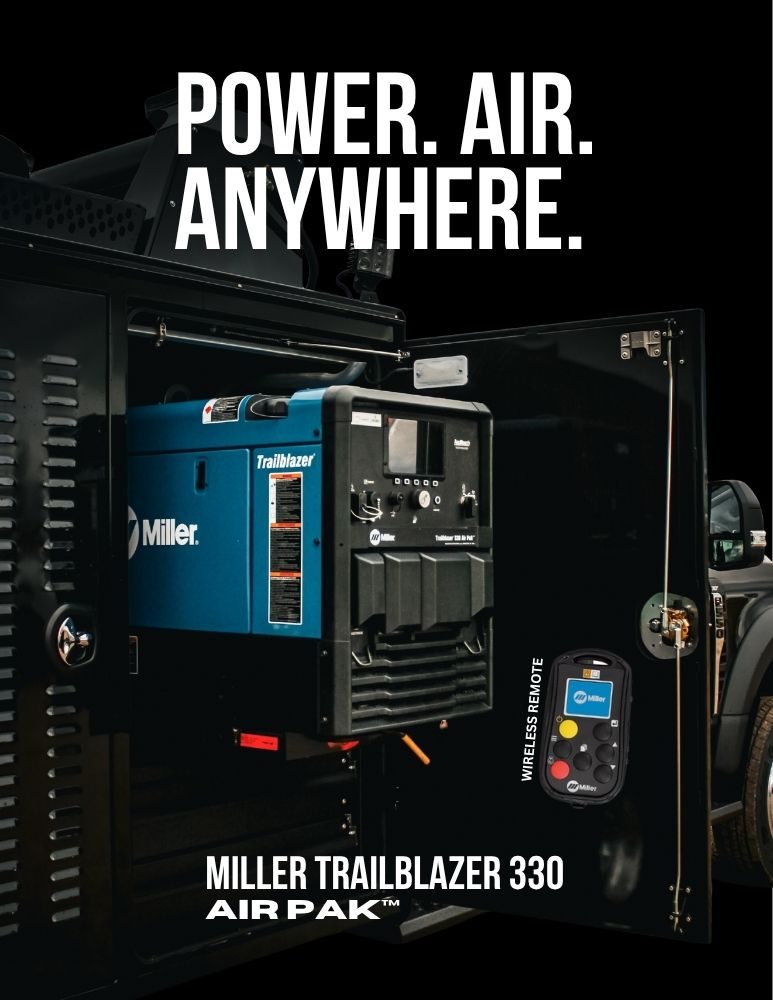

Power. Air. Anywhere. Miller Trailblazer 330 Air Pak.
Field service operations require welding capability, compressed air for pneumatic tools, auxiliary electrical power, and battery support equipment. The Miller Trailblazer 330 Air Pak consolidates these functions into a single engine-driven unit, reducing the equipment count and deck space consumption on service trucks.
Welding Output Range
The unit delivers 20 to 330 amps welding output, covering stick, MIG, and TIG processes. This amperage range handles structural repairs, fabrication work, and precision applications typical of mobile maintenance operations. The 100% duty cycle rating supports continuous welding without mandatory cool-down periods that interrupt workflow.
The Kohler 27 HP engine provides consistent power output across the amperage range. Engine reliability matters for field service because equipment failures at remote job sites create expensive downtime. The unit operates predictably across varied ambient conditions rather than requiring perfect environmental conditions.
Rotary Screw Air Delivery
The integrated rotary screw compressor produces 30 CFM at 3,600 RPM. Unlike reciprocating compressors that cycle between filling a receiver tank and delivering air, the rotary screw design provides continuous flow. This eliminates the wait times typical when receiver tanks deplete during extended tool use.
The continuous air delivery supports impact wrenches, grinders, and other pneumatic tools without the performance degradation that occurs as tank pressure drops. Tools maintain consistent speed and torque rather than slowing as stored air pressure decreases between compressor cycles.
Auxiliary Power Generation
The unit provides 10,500 watts continuous and 12,000 watts peak auxiliary power. This capacity handles power tools, work lights, and electronic equipment simultaneously. The power output quality suits sensitive electronics rather than requiring separate clean power sources for diagnostic equipment or control systems.
Field operations often occur at locations without available grid power. Self-contained generation capability eliminates dependency on site electrical infrastructure that may not exist or may be inadequate for professional equipment loads.
Battery Support Functions
The 10 to 150 amp charging capacity and 300 amp crank assist handle battery maintenance and emergency starting. Dead batteries on service trucks or customer equipment create delays that compound when you’re operating away from shop facilities. The integrated battery support eliminates waiting for separate service calls or carrying additional jump equipment.
The 12/24 volt capability accommodates both light-duty and heavy-duty equipment common in mixed fleets. One unit handles the battery requirements across different vehicle and equipment types.
Dimensional and Operational Considerations
At 51.88 inches long, 20.46 inches wide, and 27 inches tall with 587 pounds weight, the unit fits standard service body configurations without consuming excessive deck space. The compact footprint matters when trucks need to carry multiple equipment types and maintain adequate material storage capacity.
The 69.5 dB sound rating at 150 amps represents quieter operation than many field power units. Lower noise levels improve job site communication and reduce neighborhood disturbance in residential service areas. Sound level affects regulatory compliance and customer relations in noise-sensitive environments.
Warranty Coverage
Miller’s three-year True Blue Warranty covers the unit. Warranty support matters for equipment operating in demanding field conditions where failures occur far from service facilities. The coverage reduces cost uncertainty over the ownership period.
Alternative Multifunction Approaches
For operations requiring different capability combinations, VMAC multifunction systems offer alternative configurations. Comparing specifications across different manufacturers helps match equipment capabilities to specific operational requirements. Browse work-ready service trucks to see trucks with multifunction units already integrated into complete upfitting packages.
