Door retainers – Stainless steel door springs that lock into position
Cabinet venting – Bottom venturi’s with drain holes to remove moisture build-up
Door seals – One-piece curved rubber bulb seals
Drip mouldings – Aluminum gutters that channel water away from the doors
Features

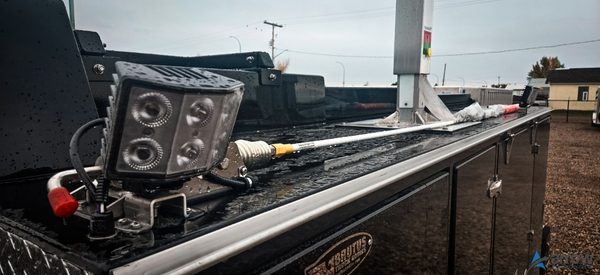

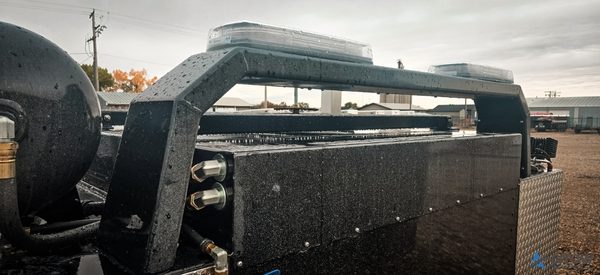

LIGHTING: Interior lights – LED perimeter strip with master switch, Exterior work lights – BrightSource 60W 4600 lumen LED 120° light (790602), Running Lights – Rubber mounted LED’s, ECCO 5517CA 17″ low-profile amber LED lights, & 8′ LED buggy whip
PAINT PROTECTION: Line-X rubberized wheel wells, cargo bay floor, tailgate top, workbench, and bumper. Aluminum diamond plate bonded to the cabinet fronts with
vertical 45 degree deflector edge.
BODY FINISH: Body finish – Fully body worked for a smooth exterior with no seams or weld joints Paint – Black single stage baked PPG polyurethane (Ford Agate Black)

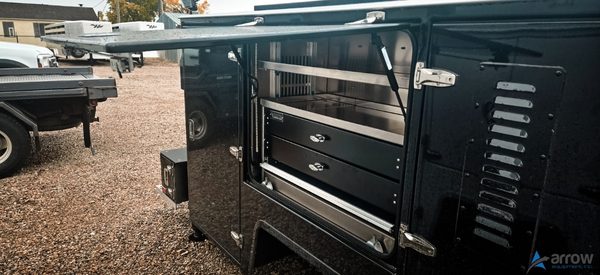

DOORS & LATCHES: Double-panel aluminum w/ Trimark slam latches and gas shocks
D-RINGS: Zinc plated rotating d-ring tie downs with drain holes

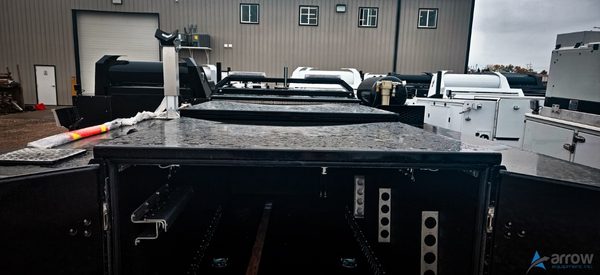

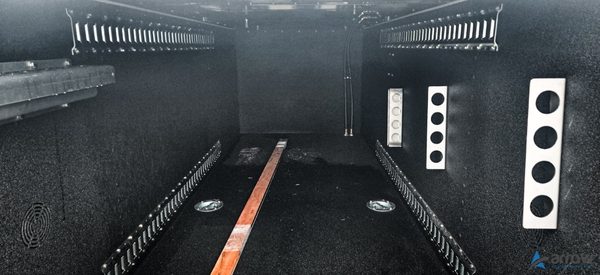

E-TRACKING: 72″ rows steel E-tracking on D/S, 72″ rows steel E-tracking on P/S
CHAIN RACK: Aluminum with lockable lid
BAR HOLDER: Stainless steel angled 4 tube bar holder

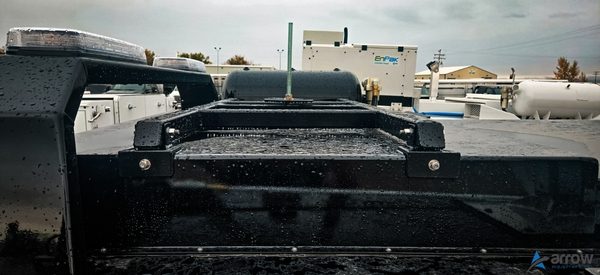

SPARE TIRE HOLDER: Color-matched, mounted on rooftop
GRAB HANDLES: 12″ w/ rubber grips

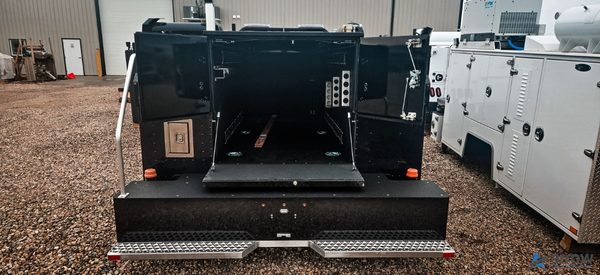

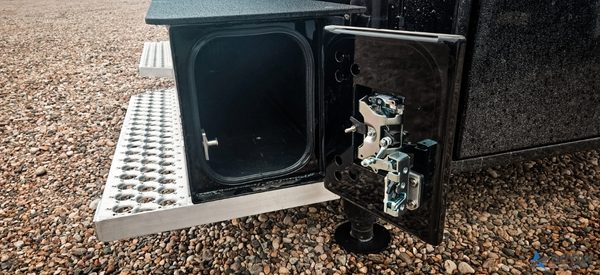

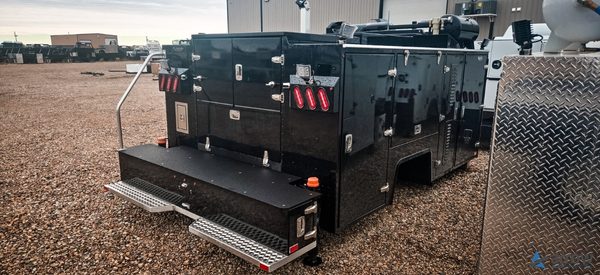

WORKBENCH BUMPER: 14”H x 13”W x 98”D interior aluminum cabinet with side aluminum doors and small slam latches, 1 ½” clamping lip, & aluminum grab handle

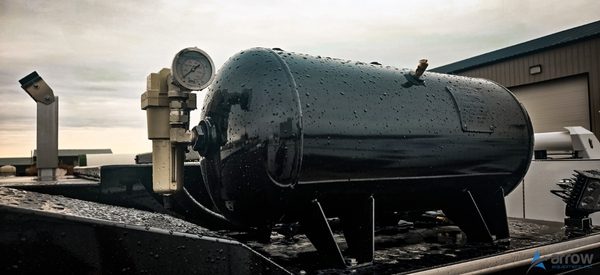

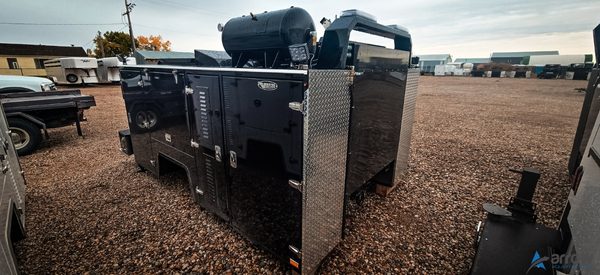

AIR TANK: 20-Gal air tank with auto-drain water trap, liquid-filled air gauge, and front hose with drain valve

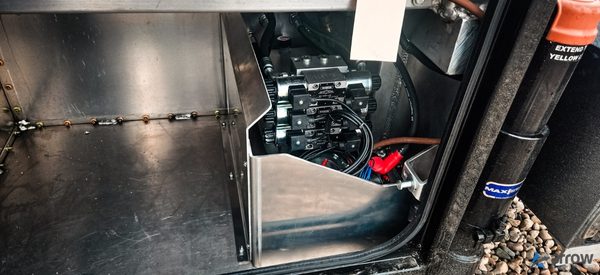

HYDRAULIC OUTRIGGERS/DOWNRIGGERS: Maxistab 6F-EHO/K-FL hydraulic stabilizer system with power out crane side, and power up and down both sides

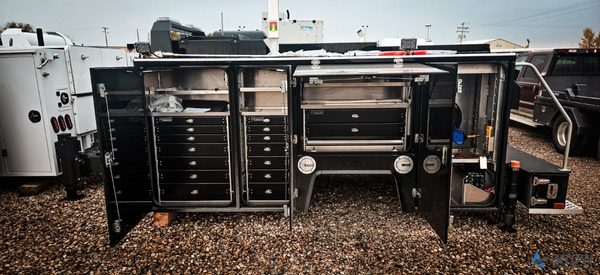

Cabinet Layouts

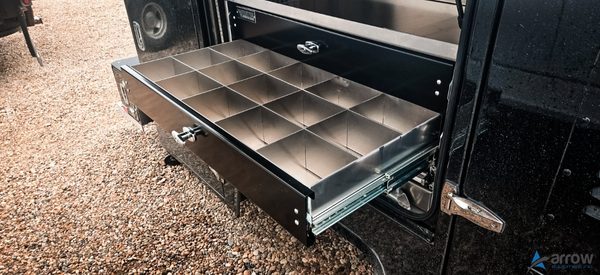

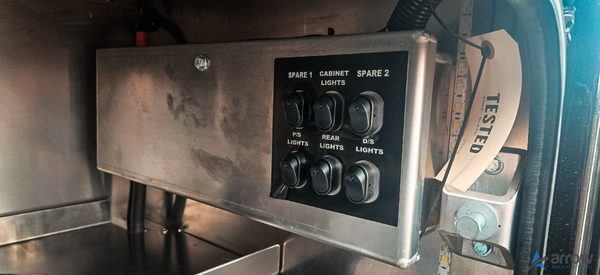

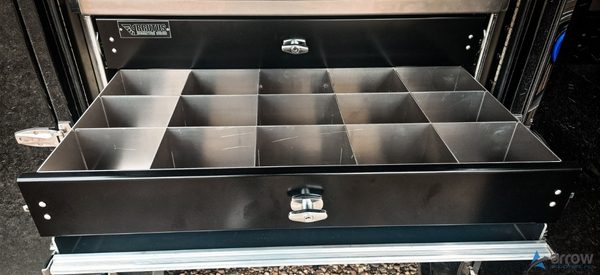

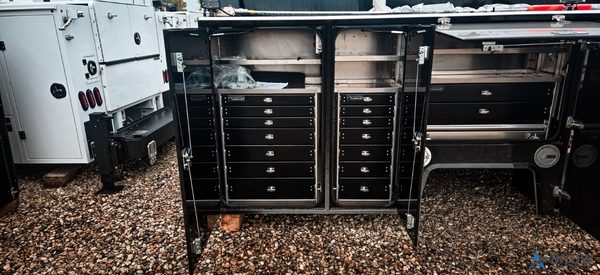

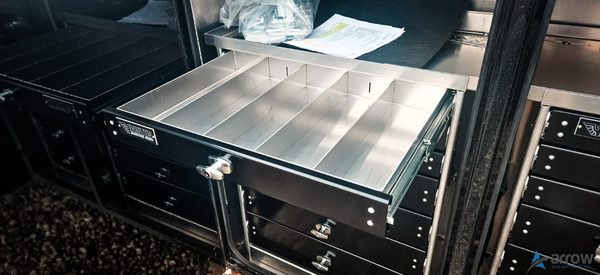

D1: 36″W: 1-7″, 3-5″, 3-3″ deep drawers w/ adj. dividers & a fixed top shelf, electrical panel for lights, strip lighting
D2: 24″ W: 1-7″, 3-5″, 3-3″ deep drawers w/ adj. dividers & an adj. top shelf, strip lighting

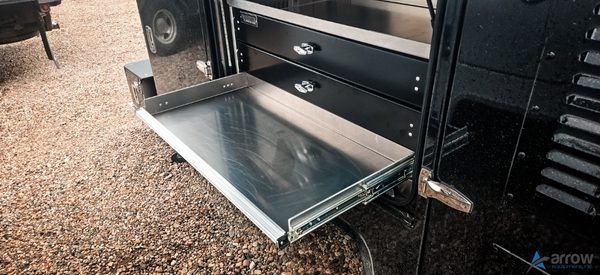

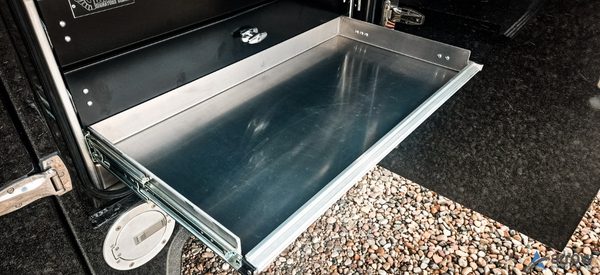

D3: 44″W: drawer pack-bolt bin with 2-5″ deep drawers & bottom aluminum work tray on 300 lb roller bearing locking slider, adj. top shelf, strip lighting

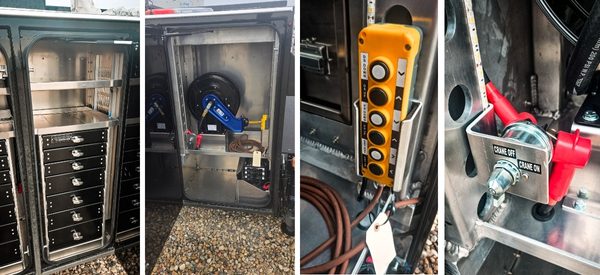

D4: 34″W: Outrigger Controls, Shelf, Crane controller mount, Graco 1/2″ x 50′ spring rewind air reel w/ rear access, crane reinforcement, strip lighting
P1: 36″W: 1-7”, 3-5”, 3-3” deep drawers, top shelf, strip lighting

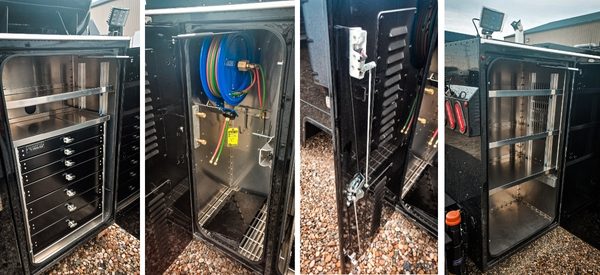

P2: 24″W: Uni-Strut channels on the front wall with aluminum channel bottle holders, Stainless 4″ swivel hooks with a 12″ stainless 5-2 I 25SS HOOKBAR, Cox 50′ spring rewind gas reel, Gauge holder, venting package
P3: 44″W: aluminum bolt bin drawers with bottom aluminum work tray, 2-5” deep drawers, and top shelf, venting, adjustable aluminum shelf, strip lighting
