Door retainers – Stainless steel door springs that lock into position
Cabinet venting – Bottom venturi’s with drain holes to remove moisture build-up
Door seals – Rubber bulb seals that are glued into a u-shaped moulding
Drip mouldings – Aluminum gutters that channel water away from the doors
Features

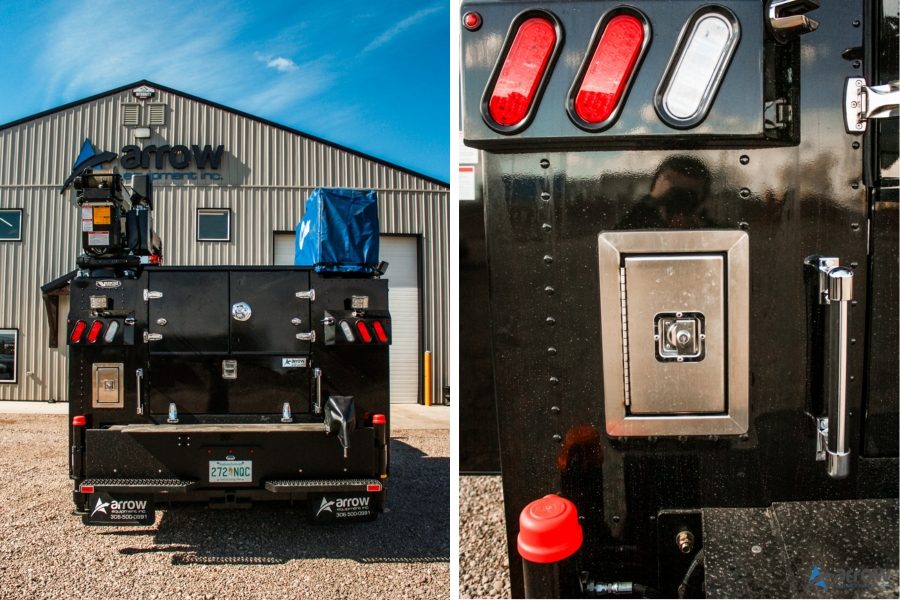

LIGHTING: Interior lights – LED perimeter strip with master switch, Exterior work lights – BrightSource 60W 4600 lumen LED 120° light (790602), Running Lights – Rubber mounted LED’s, Grote 76943 17″ low-profile amber LED lights, & 8′ LED buggy whip
PAINT PROTECTION: Endura Slip-Stop rubberized wheel wells, cargo bay floor, tailgate top, workbench, and bumper. Aluminum diamond plate bonded to the cabinet fronts with
vertical 45 degree deflector edge.
BODY FINISH: Body finish – Fully body worked for a smooth exterior with no seams or weld joints Paint – Black single stage baked PPG polyurethane (Ford Agate Black)
D-RINGS: Zinc plated rotating d-ring tie downs with drain holes

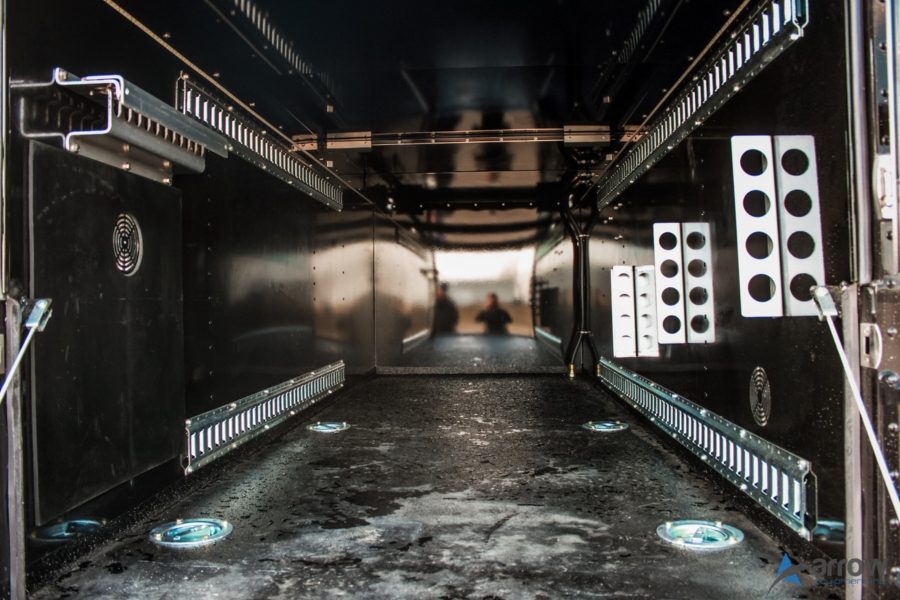

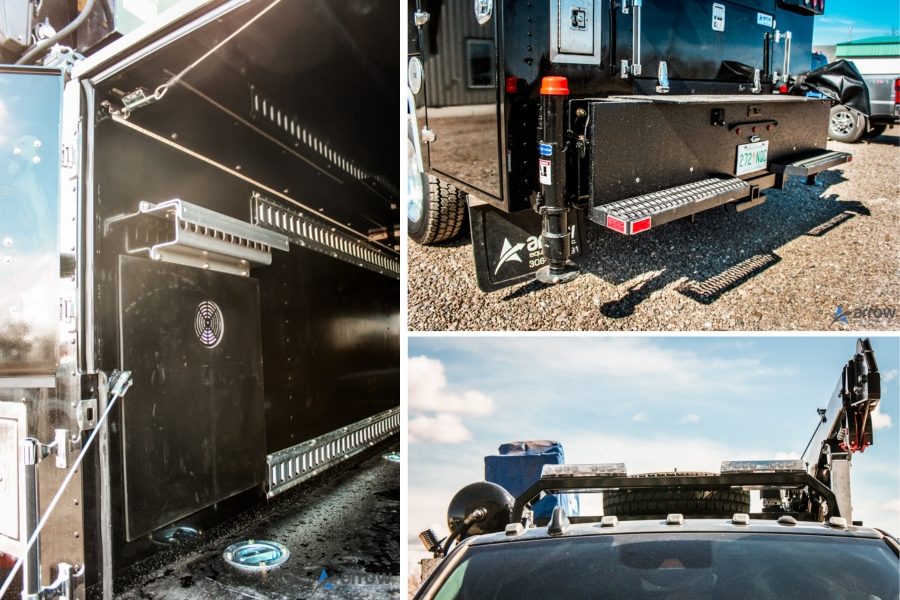

E-TRACKING: 72″ rows steel E-tracking on D/S, 96″ rows steel E-tracking on P/S
CHAIN RACK: Aluminum with lockable lid
BAR HOLDER: Stainless steel angled 4 tube bar holder
SPARE TIRE HOLDER: Color-matched, mounted on rooftop
GRAB HANDLES: 12″ w/ rubber grips
WORKBENCH: 16″ deep x 65″ wide 3/8″ smooth steel workbench plate with rounded corners, 6″ clamping lip, and 6″ vise with vinyl cover
RECEIVER HITCH: 2″ Frame-mounted
AIR TANK: 20-Gal air tank with auto-drain water trap, liquid-filled air gauge, and front hose with drain valve
HYDRAULIC OUTRIGGERS/DOWNRIGGERS: Maxistab 6F-EHO/K-FL hydraulic stabilizer system with power out crane side, and power up and down both sides

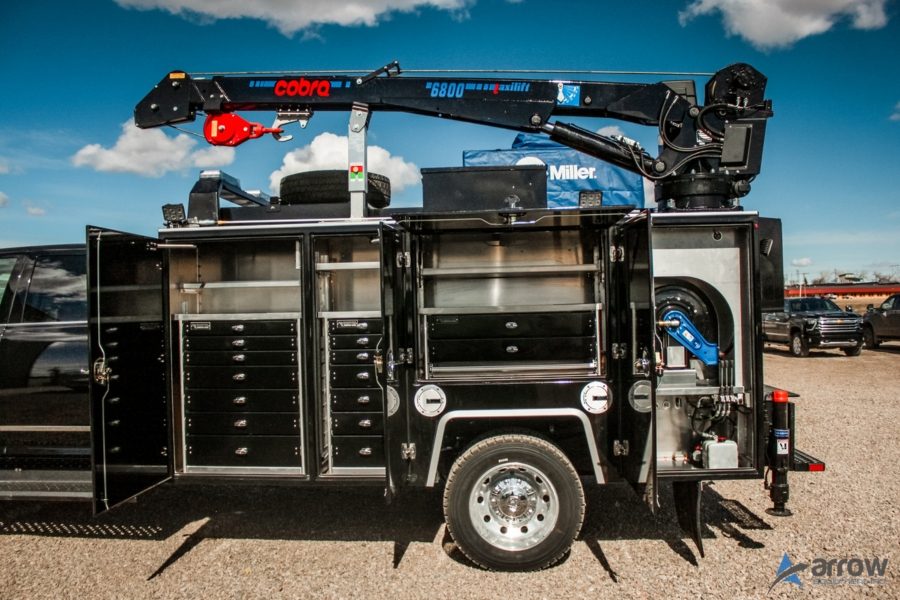

Cabinet Layouts

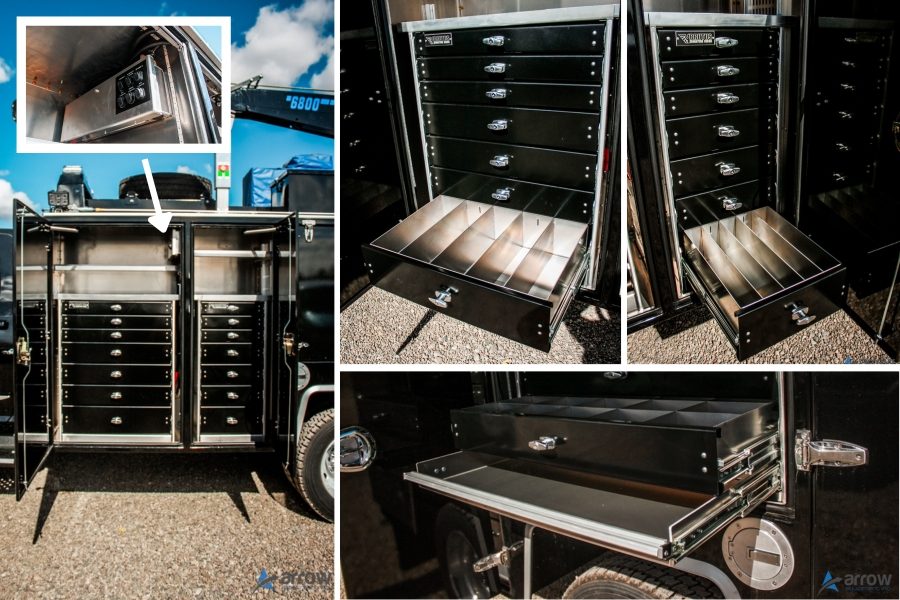

D1: 36″W: 1-7″, 3-5″, 3-3″ deep drawers w/ adj. dividers & a fixed top shelf, electrical panel for lights, vent holes, strip lighting
D2: 24″ W: 1-7″, 3-5″, 3-3″ deep drawers w/ adj. dividers & an adj. top shelf, vent holes, strip lighting

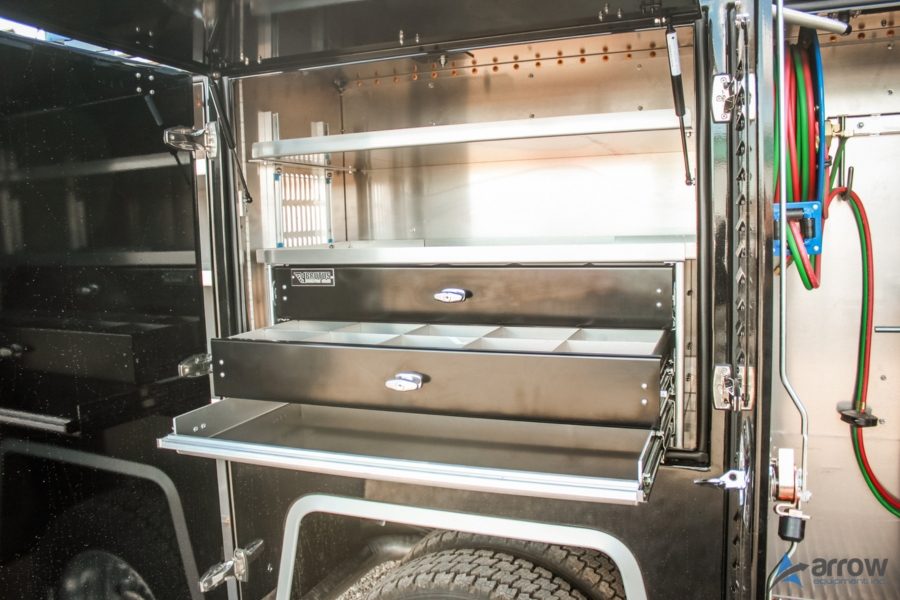

D3: 44″W: drawer pack-bolt bin with 3-4″ deep drawers & an adj. top shelf, bottom two 4″ drawers have bolt dividers, top 4″ drawer has 6 adjustable dividers, venting, strip lighting

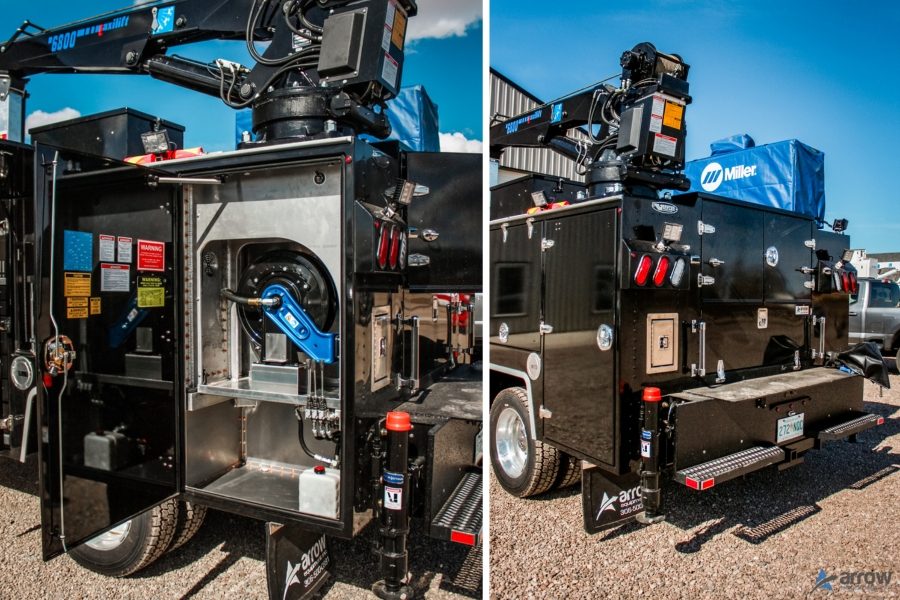

D4: 34″W: Outrigger Controls, Shelf, Crane controller mount, Graco 1/2″ x 50′ spring rewind air reel w/ rear access, venting, crane reinforcement, strip lighting

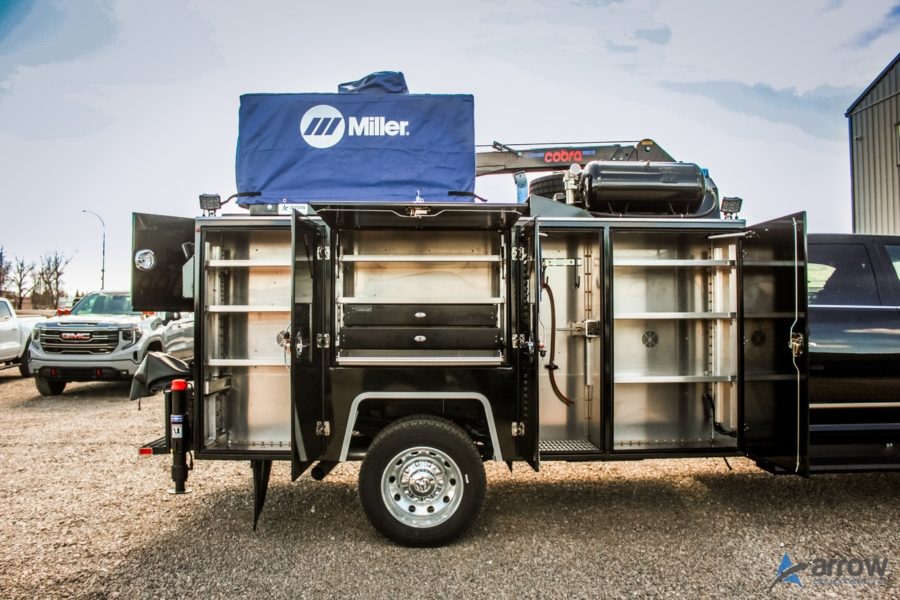

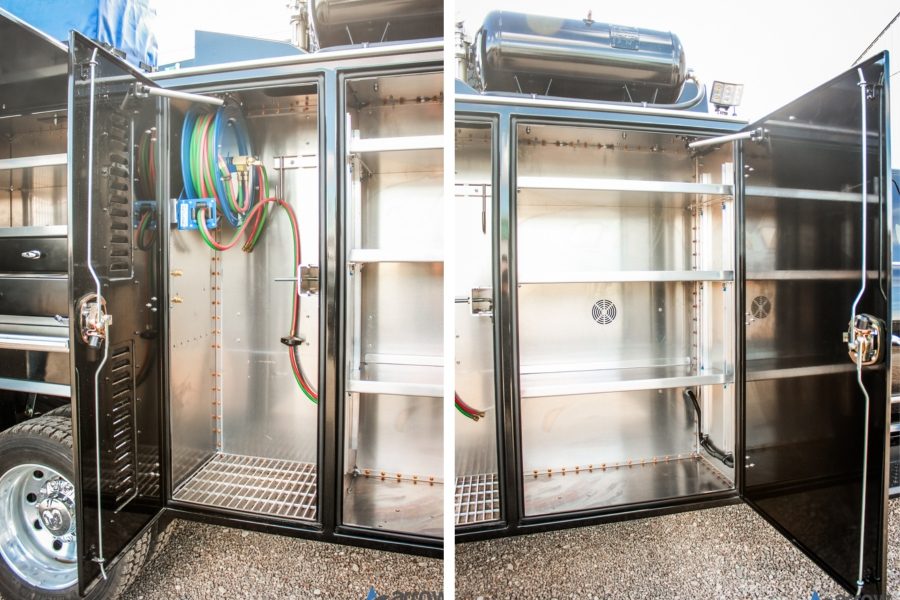

P1: 36″W: 3 Adj. Shelves, venting, strip lighting

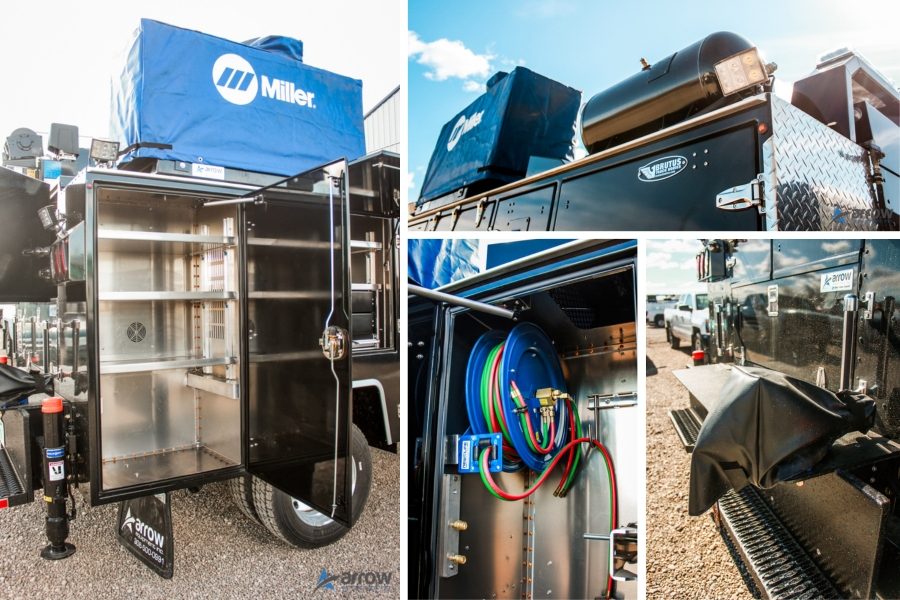

P2: 24″W: Uni-Strut channels on the front wall with aluminum channel bottle holders, Stainless 4″ swivel hooks with a 12″ stainless 5-2 I 25SS HOOKBAR, Cox 50′ spring rewind gas reel, Gauge holder, venting package
P3: 44″W: drawer pack-bolt bin with 3-4″ deep drawers & an adj. top shelf, bottom two 4″ drawers have bolt dividers, top 4″ drawer has 6 adjustable dividers, venting, strip lighting
