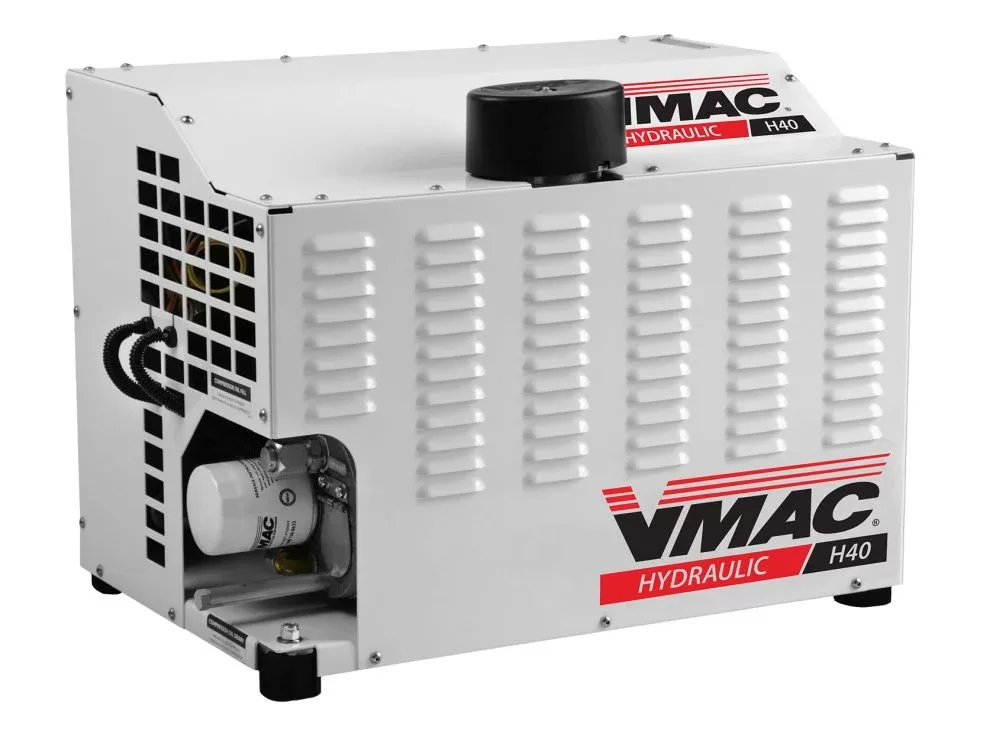

VMAC H40 Compressor

specifications

Product Type : Compressors
Manufacturer : VMAC
Model : H40
Year : 2024

NEW

Features

Free Up To 6 Cubic Feet
- VMAC’s 40 CFM hydraulic air compressors free up to 6 cubic feet on the truck deck.

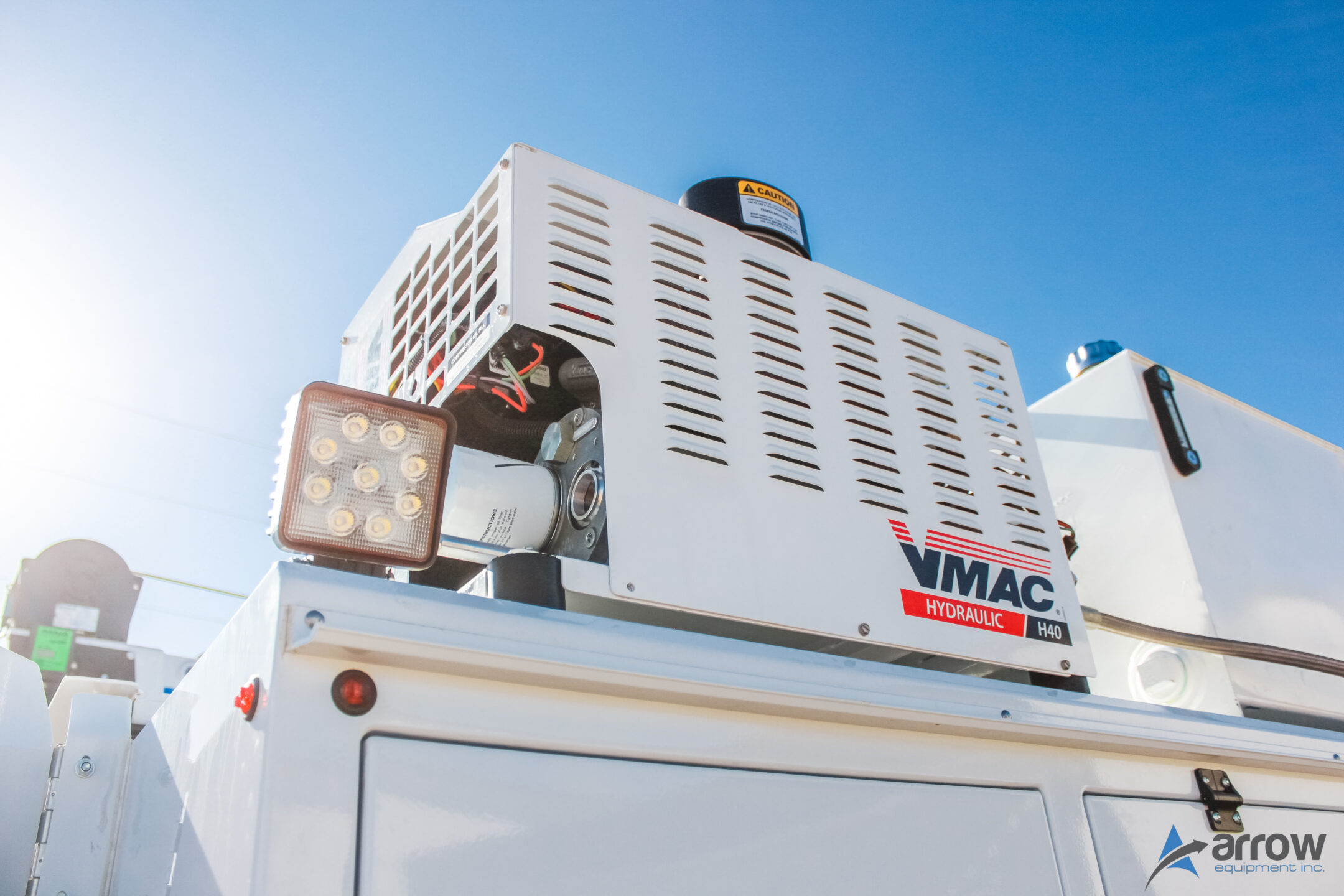

- Systems are designed and engineered to be compact for service trucks and applications where space is limited.

Decrease Truck GVW By Up To 260 lb
- H40 air compressors reduce truck GVW by as much as 260 lb, due to the systems’ innovative design, lightweight materials, and integrated components. Choosing a lightweight air compressor means you’ll be able to add more tools and equipment to your truck, carry more materials, or take advantage of better fuel economy.
Up To 40 CFM, 100% Of The Time
- VMAC hydraulic 40 CFM air compressors use patented rotary screw technology that can operate intermittently for smaller jobs, but are designed to run at 100% duty cycle without stopping, so operators don’t have to wait for their air compressor to fill up a bulky air receiver tank.
- Maximizes tool performance and eliminates downtime by keeping operators working.

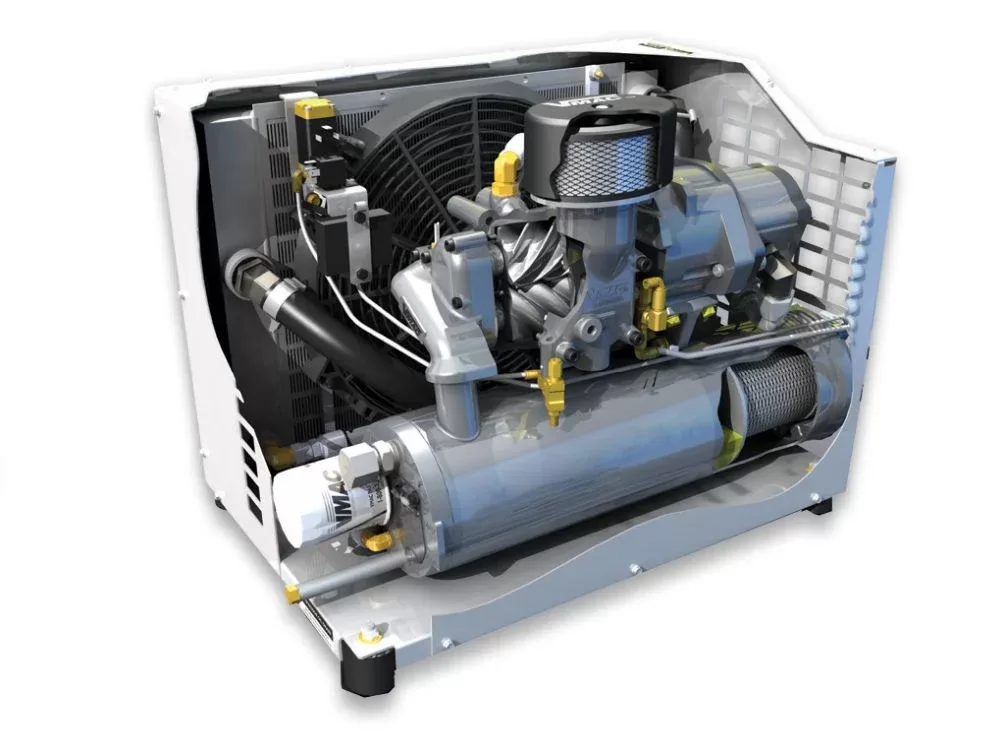

Specifications

Integrated Hydraulic/Compressor Oil Cooler
- 12V/24V activated fan, turns on/off automatically to adapt to hydraulic and compressor oil temperature
Digital Control Module
- Controls system operation and stored settings
VMAC Air Compressor
- Oil-injected rotary screw; direct-driven; 25-40 CFM @ 100 psi; 100% duty cycle; up to 150 psi
Digital Display Box
- LCD for on/off controls, observing system status and adjusting parameters, mounts where needed on truck

Hydraulic Manifold
- Controls flow of hydraulic oil through the system
Air Discharge
- Includes check valve
Air/Oil Separator Tank
- Separates compressor oil from compressed air

VMAC’s 40 CFM hydraulic air compressor is the best choice for fleet managers and owners who require hydraulic-powered compressed air and aren’t satisfied with the performance of reciprocating air compressors.

The powerful H40 rotary screw air compressor is ideal for operating small to medium sized air tools. Meanwhile, the compact design allows it to fit on trucks and specialty equipment with limited available space.
