Cobra 5500 Crane

Cobra 5500 Crane

Manufacturer:
Cobra
Model:
5500 RS E
Year:

The boom system is made of one piece of high tensile, Swedish steel with a single robot-made weld bead. This, combined with the famous hexagonal shape, gives the boom an exceptional strength and structural integrity, yet with cranes dead weights lower than any other manufacturer.

Cobra service cranes have been built since 1996 and have a proven track record operating in the hottest temperatures of the Australian desert mines, to the coldest oil fields of northern Canada.

Double hydraulic extending models have the extension cylinders inside the boom system, fully protected.

All the above make Cobra Service Cranes beautifully designed, yet incredibly reliable.

  • anti-two block and empty drum wire rope stop
  • non–rotating, high-tensile winch wire ropes
  • over-center valves on every cylinder
  • oversized and nitrated boom pins – distortion-free
  • polymeric wire rope sheaves – do not rust, seize and damage the winch wire rope.

Technical Specifications

The boom system is made of one piece of high tensile, Swedish steel with a single robot-made weld bead. This, combined with the famous hexagonal shape, gives the boom an exceptional strength and structural integrity, yet with cranes dead weights lower than any other manufacturer.

Cobra service cranes have been built since 1996 and have a proven track record operating in the hottest temperatures of the Australian desert mines, to the coldest oil fields of northern Canada.

Double hydraulic extending models have the extension cylinders inside the boom system, fully protected.

All the above make Cobra Service Cranes beautifully designed, yet incredibly reliable.

  • anti-two block and empty drum wire rope stop
  • non–rotating, high-tensile winch wire ropes
  • over-center valves on every cylinder
  • oversized and nitrated boom pins – distortion-free
  • polymeric wire rope sheaves – do not rust, seize and damage the winch wire rope.

Features

  • Amazing crane rating / weight ratio
  • Swedish high tensile steel
  • Hexagonal boom design single weld
  • Continuous (non stop) slewing
  • Big size pins nitrated
  • Planetary gear winch with non twisting cable
  • Patented pull line limiter system
  • Excellent winch single line break strength to better absorb shock load
  • Programmable load limiting device
  • Digital proportionl remote control unit (2,4 GHz) with single hand or with belly-box paddle type transmitter
  • Mechanical A2B system
  • A2B counterweight storage new design unit with standard auto-release feature
  • Installation kit included Power

Specifications

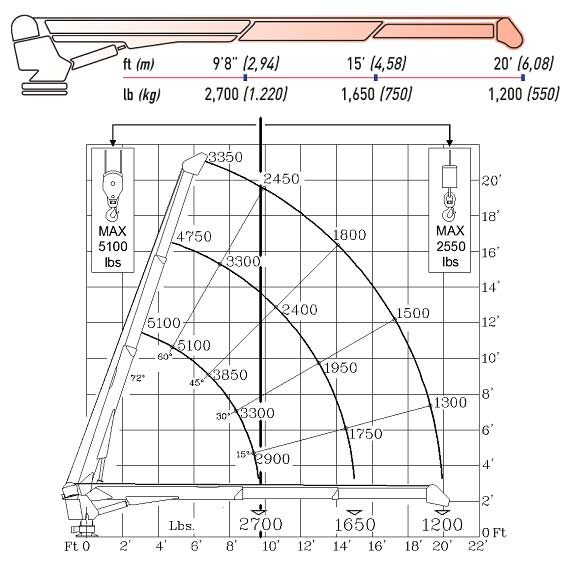

  • Crane rating: 25,000 ft-lb
  • Min. Crane Reach: 3 ft (~75°) = 5100 lbs lift cap.
  • Max Crane Reach: 21 ft (~75°) = 2550 lbs lift cap.
  • Max Crane Reach: 21 ft (~0°) = 1200 lbs lift cap.
  • 2 Fully Hydraulic Extensions
  • Slewing rotation: Continuous (non-stop)
  • Rope diameter (non-twisting type): 5/16″
  • Rope length: 98′
  • Crane weight: 1100 lbs
  • Power: 12/24 V, Electro-hydraulic, including heavy-duty DC power pack
