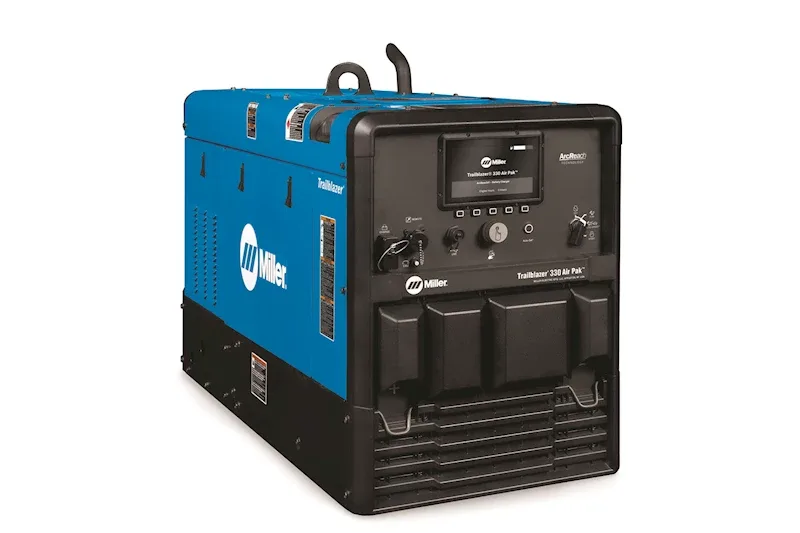

Miller Trailblazer 330 Air Pak

specifications

  • Price : Contact us for price
  • Product Type : Compressors
  • Manufacturer : Miller
  • Model : Trailblazer 330 Air Pak

    REQUEST A QUOTE

    NEW
    NEW

    Features

        • ArcReach system allows you to change weld settings from your ArchReach feeder or stick/TIG remote, saving a trip to the power supply
        • Auto-Set offers predefined weld settings
        • Data visibility for predictive maintenance
        • Direct spool gun connection: Make it easy to weld aluminum
        • Excel power delivers a full 2,400 watts (20A) of 120-volt inverter-based, pure sine wave power at idle
        • Dynamic DIG technology works on a time-based algorithm that automatically adjusts the amount of current required to clear a short
        • Machine provides up to 150 amps of DC power to quickly charge 12- and 24-volt batteries
        • Engine: Gasoline – Kohler CH749: 27 HP at 3,600 RPM and twin-cylinder, four-cycle, overhead valve, industrial, air-cooled
        • Net Weight: 587 lbs
        • Output: DC only, CC/CV
        • Processes: Stick / TIG / MIG / FCAW / Gouge
        • Amperage Range: 20–330 A
        • Voltage Range: 15–40 V
        • Aux. Power Peak Watts: 12,000 watts
        • Aux. Power Continuous Watts: 10,500 watts
        • Battery Charge/Crank Assist: 150 A charge / 300 A crank
        • Compressor: Rotary screw, 30 cfm at 160 psi, 80–160 psi working pressure

          Powerful all-in-one tool designed for repair and construction with multiprocess weld quality, auxiliary power, air compressor and battery charge/crank assist. Processes: Stick (SMAW), MIG (GMAW), flux-cored (FCAW), DC TIG (GTAW), air carbon arc (CAC-A), cutting and gouging, rated: 3/16” carbons, capable: 1/4” carbons, air plasma cutting and gouging with optional Spectrum models.

          Manufacturer Miller
          Model Trailblazer 330 Air Pak
          Condition NEW
          Submit your review
          1
          2
          3
          4
          5
          Submit

          Cancel

          Create your own review

          Arrow Equipment
          Average rating:
           0 reviews

            REQUEST A QUOTE

            FAQs

            Air tools are often rated as “Average CFM.” Average CFM is typically based on 15 second usage intervals. Impact wrenches, button punch/deck tools, and decking crimp tools are typically used intermittently (short time durations). Continuous CFM: This rating is based on continuous usage. Air grinders and sand blasters are examples of air tools that are used continuously.
            With its intuitive design, the daily maintenance of our Trailblazer engine-driven welders is fast and easy. Front panel maintenance displays help you know when your equipment needs to be serviced. And servicing is simple because of: oil checks that can be performed easily through the top of the machine by the access door, toolless panels that allow for quick access, and a single-side fuel fill and oil drain/filter.
            Moisture going into a compressor also comes out. Air compressors heat air, turning moisture droplets into vapor.
            The 330 Air Pak features reversed air flow for optimized cooling. Exclusive engine and interior componentry design operates cooler and more efficiently. The engine is rotated towards the front to create more efficient airflow. More efficient airflow and exclusive engine location are significant contributors to reduced sound level and size reduction. Hot air recirculation is eliminated when machine is mounted in tight spots, and internal parts are kept cool for optimal performance.

            Powerful All-In-One Tool

            Designed for repair and construction with unbeatable multiprocess weld quality, integrated rotary screw air compressor, and 13,000 watts of auxiliary power for job site tools.
