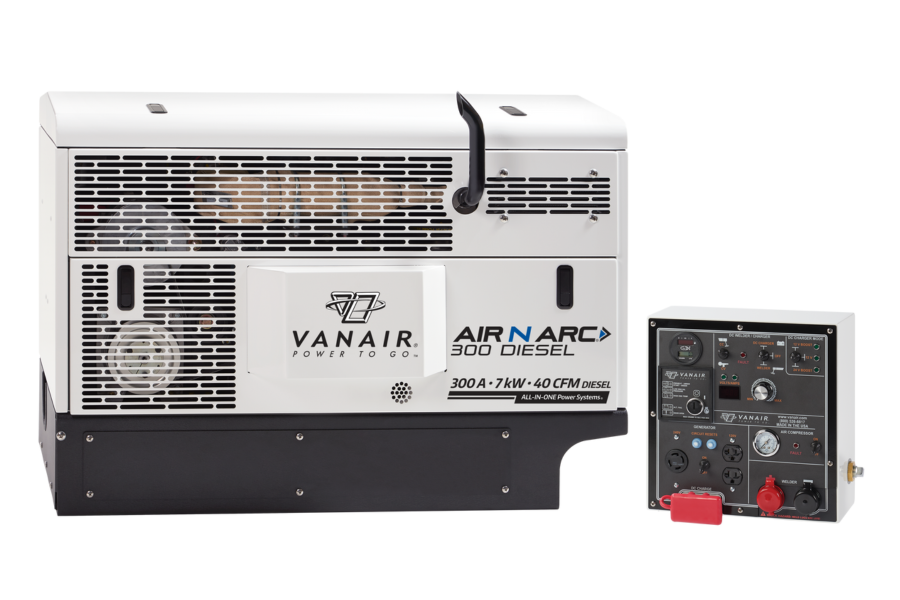

Vanair Air N Arc 300 Diesel ALL-IN-ONE POWER SYSTEM

Vanair Air N Arc 300 Diesel ALL-IN-ONE POWER SYSTEM

Category:

Work Truck Accessories, Multi-Function

Manufacturer:

Vanair

Model:

Air N Arc 300 Diesel

Year:

Increase Your Efficiency, Increase Your Productivity, and Increase Your Profitability, With One System

The Air N Arc® 300 system, provides more efficient use of your truck bed and reduces cost by combining five power sources: Rotary screw on-demand air compressor, 7 kW generator, 300 AMP welder, battery booster and battery charger – into one single unit.
Designed as a true two-generator system, the Air N Arc® 300 series allows multi-functioning such as welding and generator for lights for nighttime service.

Technical Specifications

Increase Your Efficiency, Increase Your Productivity, and Increase Your Profitability, With One System

The Air N Arc® 300 system, provides more efficient use of your truck bed and reduces cost by combining five power sources: Rotary screw on-demand air compressor, 7 kW generator, 300 AMP welder, battery booster and battery charger – into one single unit.
Designed as a true two-generator system, the Air N Arc® 300 series allows multi-functioning such as welding and generator for lights for nighttime service.

Features

Special Features
- True Two Generator System for Safe Multi-Function of Welder and Electric tools
- All the benefits of a High Frequency Welder offering Excellent Weld Characteristics
- 40 CFM Rotary Screw Compressor for Air on Demand and Extended Life of Unit
- Heavy Duty Belt Drive System for Anti-Vibration and Long Service Intervals
- Remote Mount Control Panel for the Ultimate in User Convenience
- Fuel System can be Integrated with the Chassis
- Integrated Lift Hook and Battery Tray
- Designed for Easy Maintenance
- Small Footprint – Will Fit on Side Pack or Behind Cab
- Powder Coated Sheet Metal
- Galvannealed Steel
Air Compressor
- Encapsulated Rotary Screw Compressor for Air-On-Demand
- 40 CFM @ 100 PSI
- 175 Max PSI
Welder
- High Frequency DC Welding
- 270 AMPs at 100% Duty Cycle
- CC Range 40 – 300 AMPs Operating Range
- CV Range 15 – 30 Volts
- Independent DC Welder
- Auto Speed Control
- CV MIG Capabilities
Generator
- 7 kW Peak
- 6.8 kW Continuous @ 60 Hz (Available In 5.7 kW Continuous Watts @ 50 Hz)
- Independent AC Generator
- Brushless
- Smooth Wave for Minimal Distortion
- Two-120V Outlets and One-240V Outlet
Battery Boost/Charge
- 300 AMP 12V/24V Boost
- 50 AMP 12V Charge
Cold Weather Package
- Optional Integrated 12V Weather Package on Diesel Only
- Optional 12V Heaters for Gas Model
Remote Control Panel (harness not included)
- Provides Ultimate User Convenience and Safety
- All Functions Accessible at Panel. No Need to Jump In and Out of Vehicle.
- Filter/Lubricator/Regulator (FLR)
- Hose Reels and Fittings
- OSHA Safety Valve (Velocity Fuse)
- Post Drivers
- Service/Control Line Moisture Separators
- Tool Oiler/Lubricator
Engine
- 26.5 HP EFI Kohler, Air Cooled or 25 HP Kubota®, Liquid Cooled
- Electric Start
- 12 Gal. Integral Tank
- Provides Power for Emergency and Safety Lights with Truck Engine Turned Off
- Tier 4 Emission Compliant
- Glow Plugs

Specifications

Foot Print (In.)–47.5L x 21.0W x 33.4H, with fittings (In.)–48.0L x 25.0Wx33.4H*
Dry weight (Lbs.) – 870 Lbs.
Engine: Diesel: 25 HP Kubota®, Liquid Cooled (Tier 4 Compliant)
Compressor Type: Rotary screw
CFM Rating: 40 CFM
Max Pressure: 175 PSI
Generator Wattage: 7 kW peak – 6.8 kW continuous, AC Power, 60 Hz, Single Phase, 120V and 240V Outlets
Welder Amperage: High frequency DC welding, 270 AMPs at 100% duty cycle CC: 40-300 AMPs operating range, CV: 15-30 Volts
Battery Charger/Booster: 300 AMPs 12V/24V Boost, 50 AMP 12V Charge
Drive System: Belt Driven
Fuel Capacity (Gal.): 12 Gal. Integral Tank (Optional Remote Tank or Plumb to Chassis)

Stock Number:

Category:

Work Truck Accessories, Multi-Function

Manufacturer:

Vanair

Model:

Air N Arc 300 Diesel

Year:

Condition:

Air N Arc 300 Diesel Spec Sheet
